Power Hardware-in-the-Loop
(Power HiL) Test Systems
Power HiL: Bridging Simulation and Real Power Testing
Power Hardware-in-the-Loop (Power HiL) combines real-time simulation with real power hardware to close the gap between classical HIL testing and dynamometer-based validation.
This approach supports advanced testing of power electronics systems in a controlled test environment.
A Joint Power HiL Offering from dSPACE and ENORISE
ENORISE and dSPACE bundle their long-standing expertise to deliver fully integrated Power HiL test systems from a single source.
- ENORISE: more than 40 years of experience in designing, building test benches and test facilities
- dSPACE: more than 30 years of leadership in real-time simulation hardware and software
Together, both companies deliver a harmonized Power HIL solution optimized for inverter and power electronics testing.
Why Choose dSPACE + ENORISE for Power HiL?
A Combined and Harmonized Solution
- One integrated system for simulation, emulation and power testing
- Seamless interaction between real-time models and physical hardware
- Reduced integration effort and faster project deployment
One Integrated Power HiL Solution
- Combined and harmonized system architecture
- Simulation, emulation and power testing from a single source
- Optimized integration between software and hardware components
High-Voltage Power Electronics Testing Applications
Devices Under Test
- Automotive traction inverters
- Industrial back-to-back inverters
- Chargers
- DC/DC converters
Emulated Components
- Electric motor
- Battery
- AC grid
Power Hardware-in-the-Loop System Concept

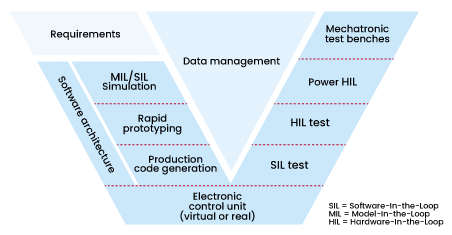

The Power HIL system integrates:
- Real-time simulation and software architecture
- Electronic control units (virtual or real)
- MiL, SiL, HiL and Power HiL test levels
- Mechatronic test benches and power interfaces
- Data management capabilities
Why Integrate Power HiL in Your Validation Strategy?
- Enable realistic testing with real power interaction
- Support early validation of power electronics systems
- Reduce dependency on full physical test setups
- Improve test coverage for inverter and power electronics control
